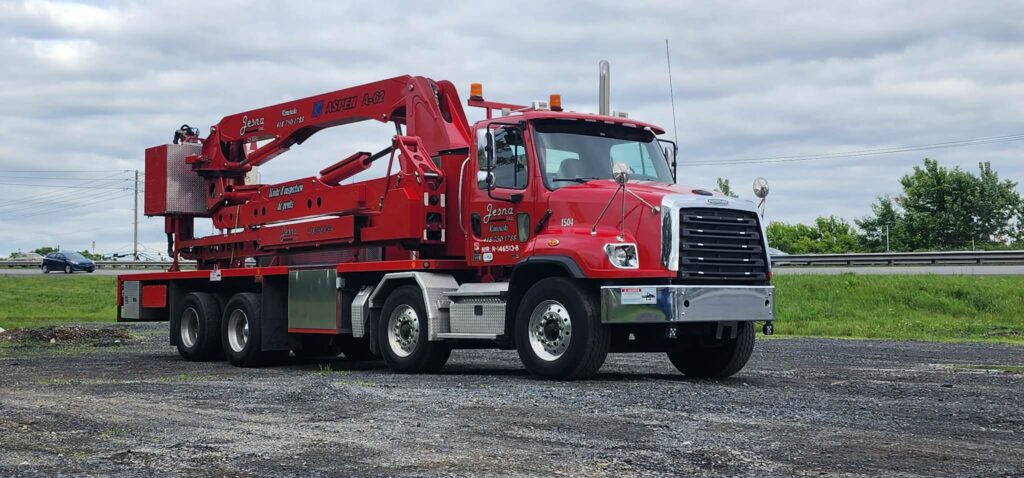

A-62 Aspen Aerials Under Bridge Bucket Truck
Multifunctional Unit: Full Infrastructure Access with Performance and Reliability

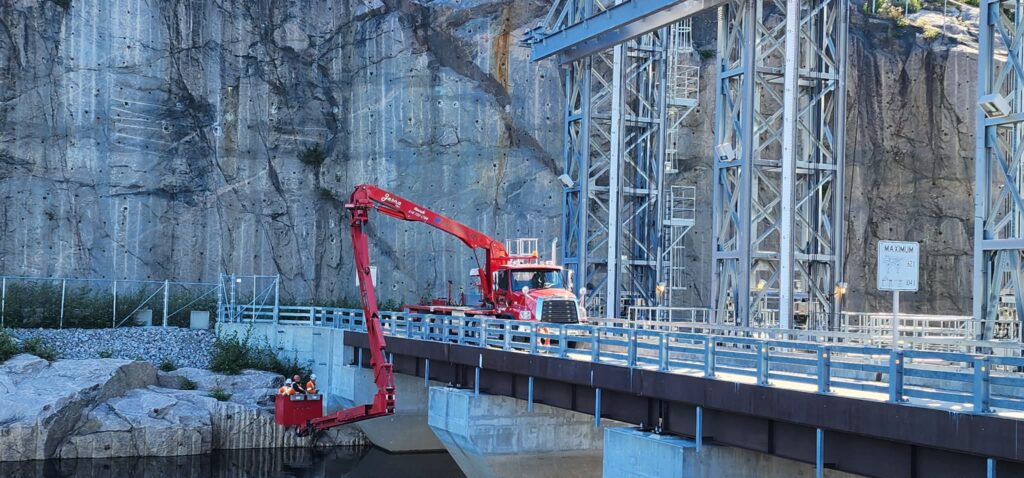

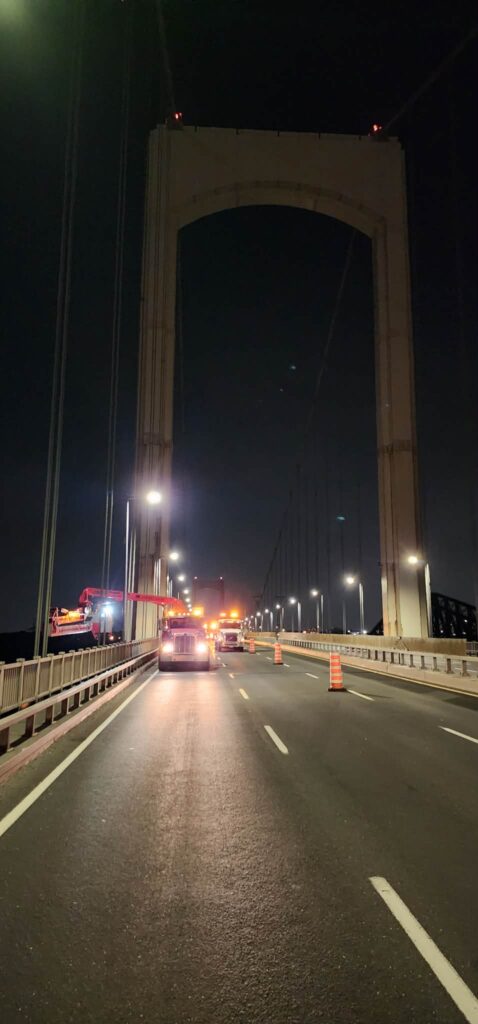

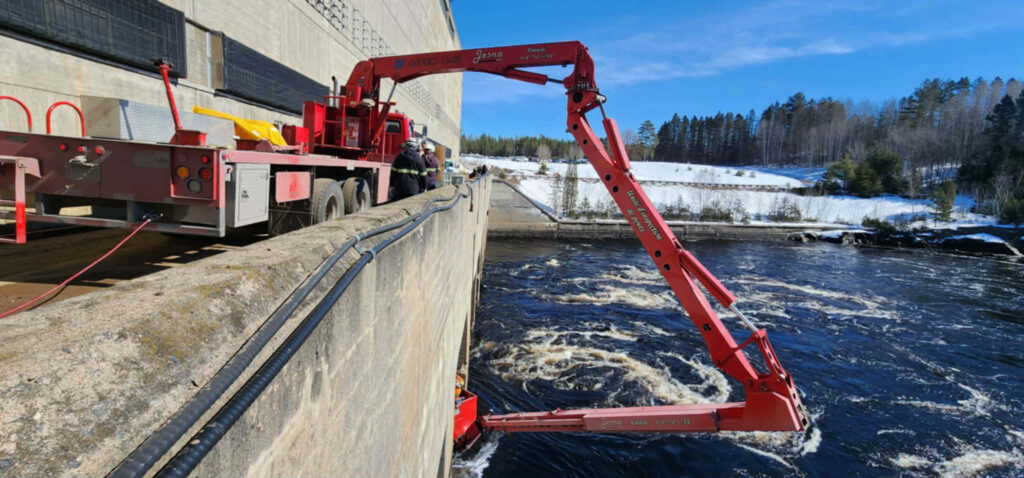

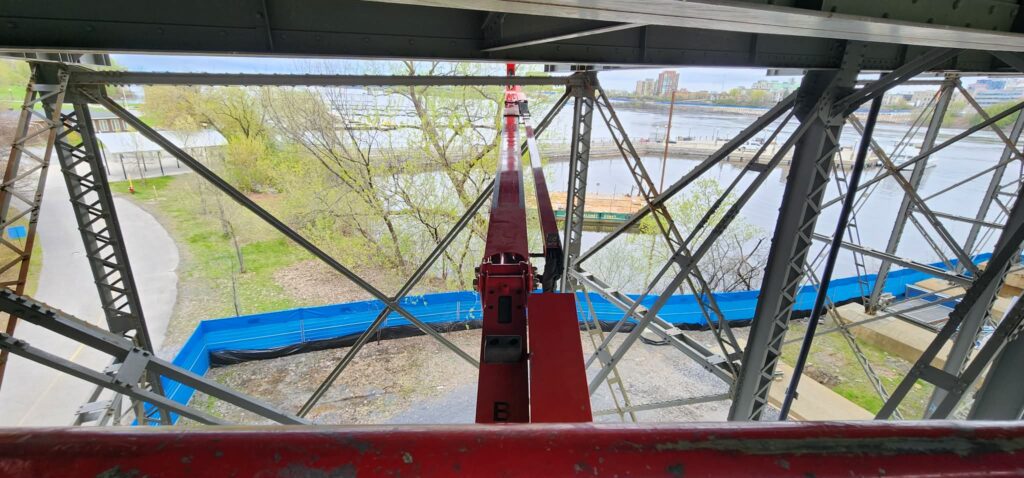

This multifunctional unit is capable of maneuvering around bridges and is equipped with the latest technological advancements. It offers greater versatility, easier operation, and increased reliability in all conditions. This model was designed to access areas above, around, and beneath even some of the widest bridges, delivering uncompromising efficiency and performance.
Maneuverability

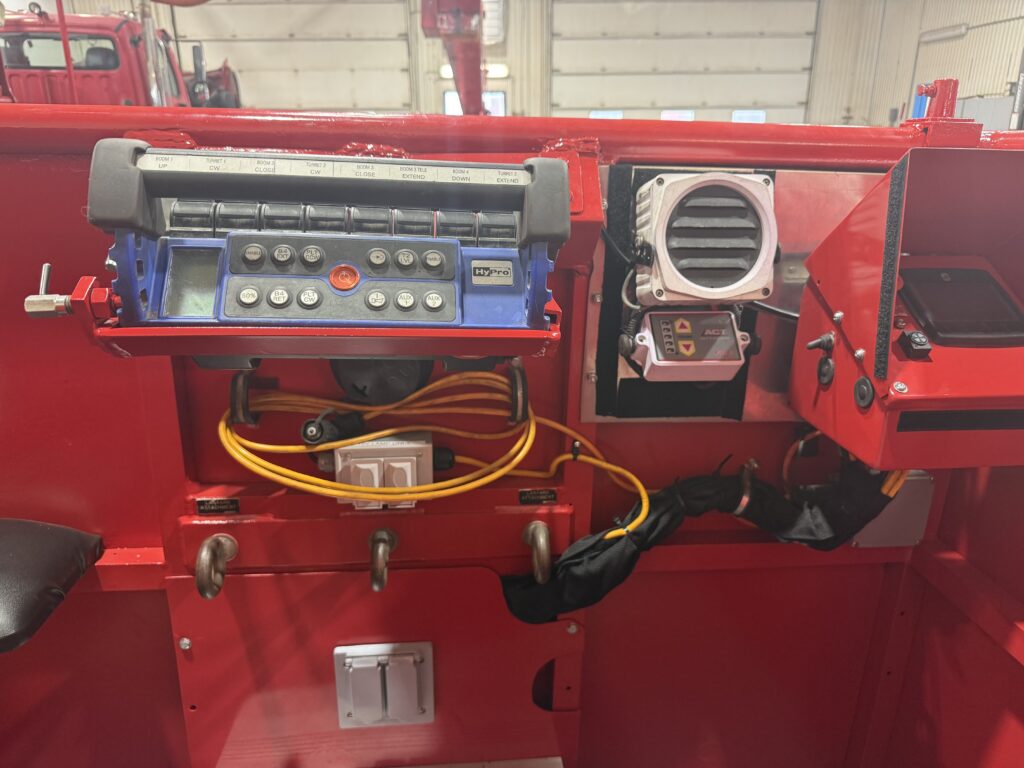

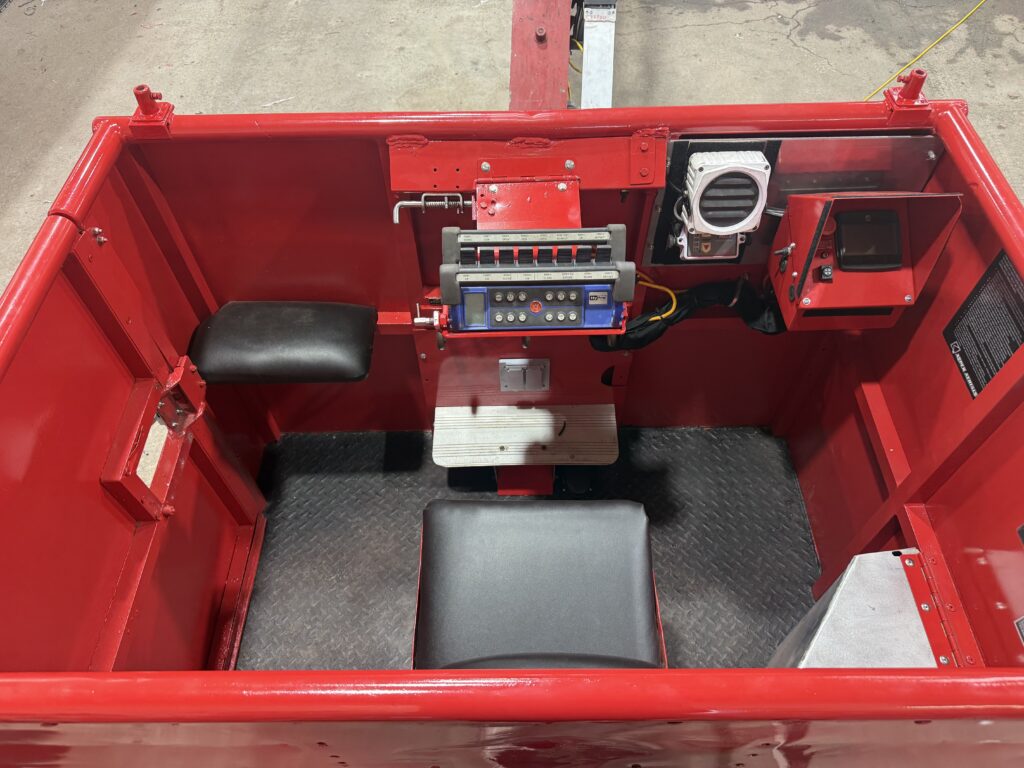

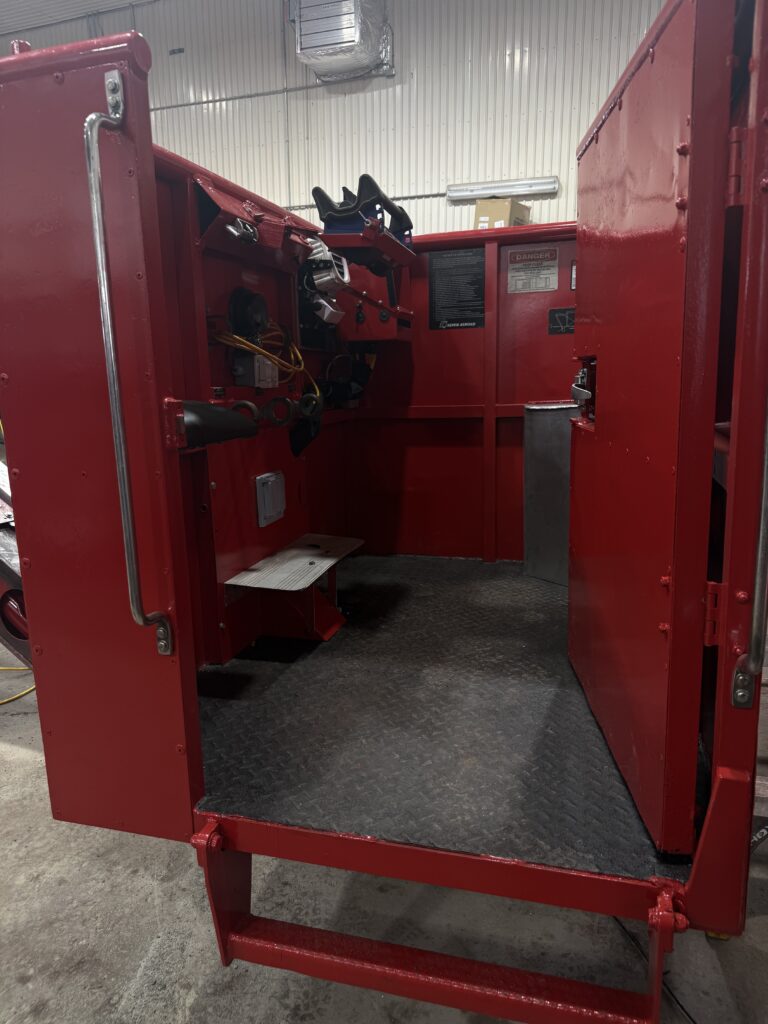

Two rotating turntables, along with multiple articulated and telescopic booms, allow the 40 x 60-inch rotating platform to deploy on either side of the truck to access all types of structures. In this regard, the Aspen A-62 truly sets itself apart!
stabilization
No outriggers are required, and all counterweights remain within the truck chassis. The newly redesigned movable counterweight is installed beneath the truck platform and activates on the side opposite to where the Aspen A-62 is deployed. In transport mode, the counterweight stays centered on the truck to ensure better road handling. A torsion box and hydraulic axle locks connect the chassis to the truck’s axles, allowing the vehicle to move even when the unit is fully deployed.
Specifications
Horizontal under bridge reach
61'9"/ 18.8 meters
Vertical reach down
67'7"/ 20.6 meters
Vertical reach up
51'6"/ 15.7 meters
Boom #1 movement
+ 30 to - 35 degrees
Boom #2 movement
+ 0 to - 105 degrees
Boom #3 movement
+ 90 to - 60 degrees
Boom #4 movement
+ 90 to - 36 degrees
Space required on bridge
102" / 2.5 meters
Basket capacity
600 lbs / 272 kg
Basket size
40” x 60" x 42" / 1,070 mm / 1,520 mm
Total height
13'3"/ 4 meters *
Total length
40'/ 12.2 meters *
Truck width
8'7" / 2.65 meters
* May vary depending on the chassis
