Anderson UnderBridge HP35 trailer-mounted walkway
Stable, versatile, and easy-to-use equipment
Its high stability and highly secure features make this trailer-mounted platform an industry benchmark. This equipment is lightweight, versatile, and suitable for various types of work. It is quick to deploy and its hydra static drive allows it to move around and perform tasks quickly. Designed for easy operation and low maintenance, It is possible to deploy the platform on both sides of the trailer, but this requires prior configuration. This is the only type of equipment in our fleet that can also be rented for operation by the customer themselves.
configurations
HP35 short configuration
PLATFORM RETRACTED LENGTH
18’10'' / 5,5 meters *
HP35 configuration
PLATFORM RETRACTED LENGTH
27’10'' / 7,57 meters
* Can be inserted from a horizontal clearance of 2 meters
Specifications
tower length
3'4" / 1,02 meters
Tower Separation Width
5'1" / 1.55 meters
Tower adjustment
±5 degrees
MAXIMUM GUARDRAIL HEIGHT
5'9" / 1.75 meters
MAXIMUM DISTANCE FROM THE GUARDRAIL
4'2'' / 1,27 meters
Maximum grade
5 % (3 degrees)
Maximum super elevation
8 % (4,5 degrees)
ROADWAY CLEARANCE
11'9” / 3,6 meters
Outriggers clearance
2'11” / 0,89 meters
Width between wheels
7'6” / 2,29 meters
Horizontal CLEARANCE for tower rotation
1'4” / 0,42 meters
Vertical CLEARANCE for tower rotation
2'10” / 0,86 meters
Vertical adjustment of Outriggers
1'3" / 0,38 meters
maximum drop depth
18'2" / 5.54 meters
maximum platform swing clearance
14'2" / 4,32 meters
Platform length
35’ / 10.67 meters
PLATFORM WIDTH - ALUMINUM SECTION
2'7" / 0.78 meters
PLATFORM WIDTH - STEEL SECTION
3'1" / 0.94 meters
PLATFORM WEIGHT CAPACITY
1 000 lbs / 455 kg

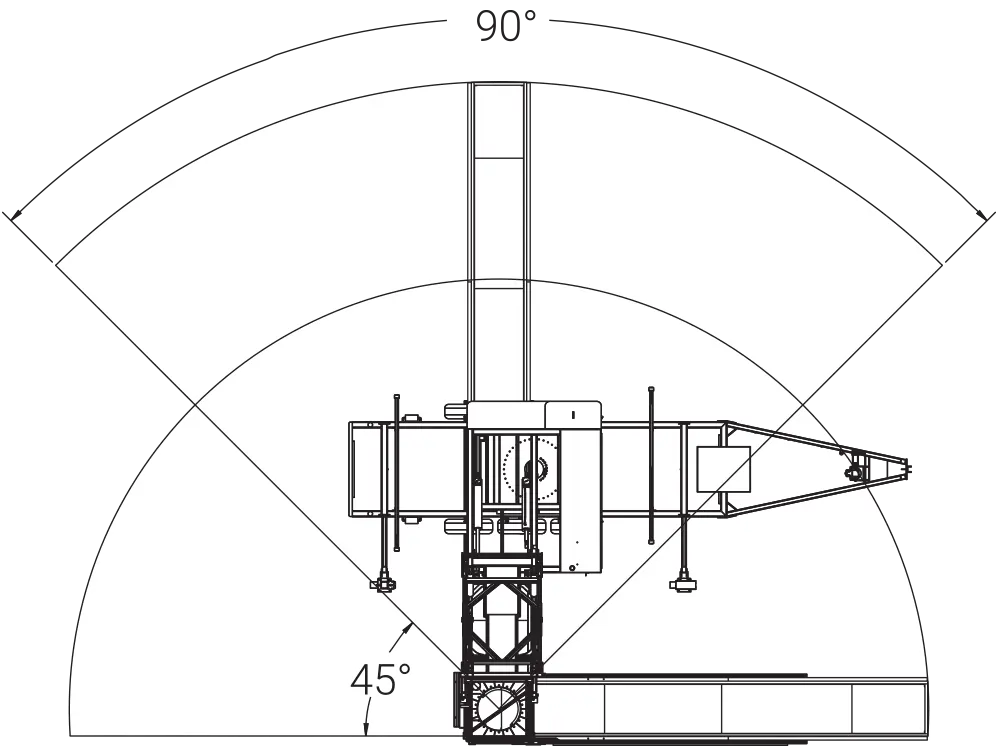

Platform rotation
180 degrees
OVERALL LENGTH
35' / 10,67 meters *
OVERALL WIDTH
8’4” / 2,54 meters *
OVERALL HEIGHT
10’6” / 3,2 meters *
TOTAL WEIGHT
21 000 lbs / 9 525 kg *
* MAY VARY DEPENDING ON THE CHASSIS OF OUR UNITS
