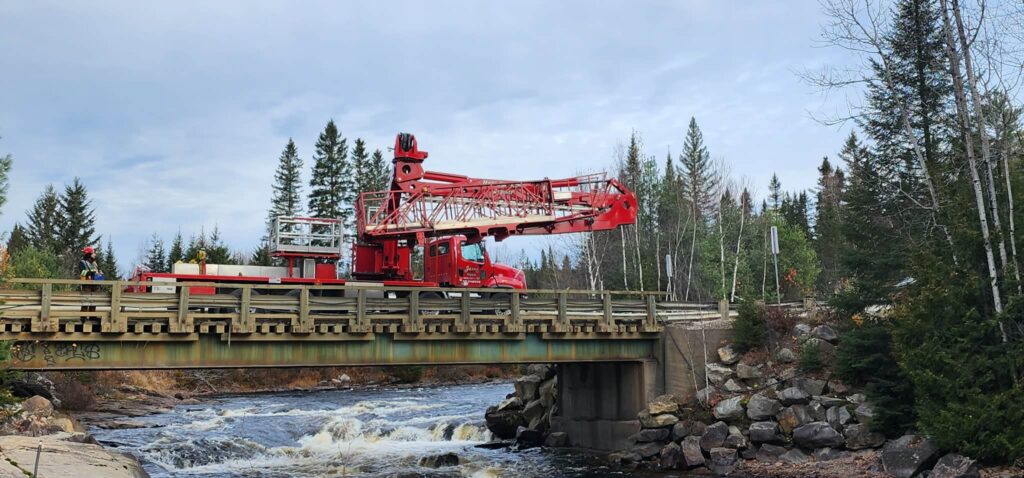

A-62P Reverse-Articulated Under Bridge Platform Truck
Versatility and Uncompromising Performance for Bridge Inspection
Through R&D (including customer feedback, FEA engineering, and repetitive motion testing), the Aspen A-62P was designed to deliver greater versatility, simplicity, and reliability in all conditions. This model provides access to areas above, around, and beneath even the widest bridges, offering uncompromising performance and efficiency.
Maneuverability
Two rotating turntables plus multiple articulating booms allow the walkway to deploy off of either side of the truck to access all of your structures. You will have access to places that a conventional tower walkway cannot reach. The Aspen A-62P is truly in a league of its own.
stabilization
Outriggers are not required and all counterweights stay within the width of the truck body. The sliding counterweight is installed under the truck bed and operates to either side while the Aspen A-62P is deployed to the opposite side. In the transport mode, the counterweight stays in the center of the truck for improved road handling. A torsion-box subframe and hydraulic axle locks unitize
the chassis and truck axles, allowing the vehicle to travel while the unit is fully
deployed.
configurations
A-140 configuration
Horizontal under bridge reach
45’11”/ 14 meters
A-150 configuration
Horizontal under bridge reach
49’2”/ 15 meters
A-160 configuration
Horizontal under bridge reach
52’6”/ 16 meters
A-170 configuration
Horizontal under bridge reach
56’1”/ 17.1 meters
Shared specifications
MAXIMUM VERTICAL INSERTION REACH UNDER THE BRIDGE (BOOM #2)
24’ / 7.3 meters
MAXIMUM GUARDRAIL HEIGHT
11' / 3.4 meters
MAXIMUM DISTANCE FROM THE GUARDRAIL
11'10'' / 3.6 meters
BOOM #1 MOVEMENT
+30 to -35 degrees
BOOM #2 MOVEMENT
0 to -105 degrees
ROADWAY CLEARANCE
8'6" / 2.5 meters
Walkway capacity
1,500 lbs / 680 kg
Walkway width
44” / 1.12 meters
Walkway height
63” / 1,6 meters
OVERALL HEIGHT
13'3" / 4 meters *
OVERALL LENGTH
40’ / 12.2 meters *
OVERALL WIDTH
8'7'' / 2.65 meters *
TOTAL WEIGHT
66 000 LBS / 30 000 KG *
TURNING RADIUS
92' / 28 meters *
* MAY VARY DEPENDING ON THE CHASSIS OF OUR UNITS
